Automatic Garlic Peeling Processing Plant

automatic garlic process machine
automatic garlic process machine
garlic processing project
garlic peeling processing machine
<
>
Features
For the garlic peeling processing plant,we have garlic root cutting machine with flat type concave type, garlic separator, peeling, paste making,packing machine and others. We can provide you whole garlic process solution. You can tell the capacity you need and the process steps you need . Then provide you solution according your detail requirement.

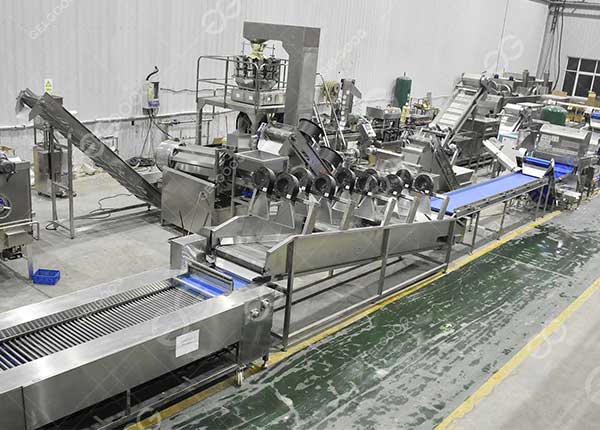

automatic garlic processing plant
Garlic root cutting machine:
The garlic root cut machine is used to cut fresh garlic’s stem and tail.
You need to put the garlic into the garlic root cut machine by hand, one by one, but one labor is ok. If an experienced worker, hour capacity can reach up to 1000kg/h.
The garlic root cut machine has the function of automatic cutting stem and roots.The depth of cutting can be adjusted automatically according to the different size of garlic.

Garlic separate machine :
This garlic bulb breaker machine can be used for garlic processing industry, vegetable processing plants, supermarkets, etc. It can work individually, or work with other garlic process machine.

Garlic peeling machine:
The machine is used to remove garlic skin without damage.  The more detail information visit website.

Garlic packing machine:

We have different type packing machine such as vacuum packaging machine, pillow packaging machine, granule packing machine ect. You can tell us your detail requirement then can provide you suitable packing machine.

Technical Data
No Name Dimension Power/Material
1 Elevator  3000*500*1800mm   0.75kw
Pvc  304stainless Steel
2 Garlic Breaker   Machine   1600*900*1200mm  3kw
300-600kg/h
304stainless Steel
3 PickingLine  3500*800*800mm 1.1kw
304stainless Steel and Manual adjust Speed
4 Peeler Feeder Elevator 2500*500*1600mm 0.75kw
304stainless Steel
5 Chain Peeler  2800*800*1650mm  1.85kw
304stainless Steel
6 PickingLine   4000*800*800 mm 1.1kw
304stainless Steel and Manual adjust Speed
7 Elevator 2500*500*1600mm 0.75kw
304stainless Steel
8 Air Bubble Washing Machine 4000*1200*1400mm 2.57kw
316 Stainless Steel
9 Axial Flow Fan Model Drying Machine 4000*1100*1600mm 2.78kw
304stainless Steel
10 Sorter 2.1m*0.6m*0.8m 1.5KW
304stainless Steel
